垫高块D型(配TD & FT系列)
商品介紹

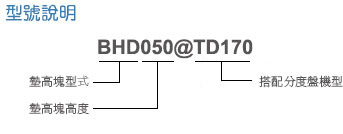

| 型式/规格 | A | B | C | F | G | M | N&N' |
| BHD050@TD170 | 230 | 148 | 50 | 14H7 | 5 | 4X14 | 200 |
| BHD050@TD200 | 230 | 208 | 50 | 18H7 | 5 | 4X18 | 200 |
| BHD050@TD255 | 288 | 270 | 50 | 18H7 | 5 | 8X18 | 250&200 |
| BHD050@TD320 | 430 | 350 | 50 | 18H7 | 5 | 8X17 | 400&250 |
| 柱孔 | |||||||
| BHD050@FT135 | 288 | 160 | 50 | 14H7 | 5 | 8X14 | 250&200 |
| BHD050@FT160A | 288 | 160 | 50 | 18H7 | 5 | 8X18 | 250&200 |
| BHD050@FT160 | 288 | 189 | 50 | 18H7 | 5 | 8X18 | 250&200 |
| BHD050@FT210 | 400 | 189 | 50 | 18H7 | 5 | 8X18 | 250&200 |
| 型式/规格 | O | R | S | T | 搭配 |
| 机型 | |||||
| BHD050@TD170 | 118 | 25 | 168 | 31 | TD-170 |
| BHD050@TD200 | 178 | 25 | 148 | 30 | TD-200 |
| BHD050@TD255 | 230 | 25 | 233 | 37 | TD-255 |
| BHD050@TD320 | 310 | 0 | 0 | 0 | TD-320 |
| BHD050@FT135 | 120 | 25 | 95 | 32.5 | FT-135 |
| BHD050@FT160A | 120 | 25 | 95 | 32.5 | FT-160A |
| BHD050@FT160 | 149 | 25 | 124 | 32.5 | FT-160 |
| BHD050@FT210 | 149 | 25 | 124 | 32.5 | FT-210 |
单位mm
