垫高块C型(配TD & FT系列)
商品介紹

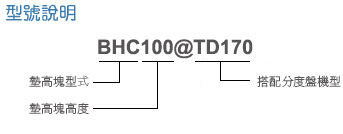

| 型式/规格 | A | B | C | F | G | M | N&N' |
| BHC100@TD170 | 230 | 148 | 100 | 14H7 | 5 | 4X14 | 200 |
| BHC100@TD200 | 230 | 148 | 100 | 18H7 | 5 | 4X18 | 200 |
| BHC100@TD255 | 288 | 196 | 100 | 18H7 | 5 | 8X18 | 250&200 |
| BHC100@TDE255 | 300 | 144 | 100 | 18H7 | 5 | 8X18 | 250&200 |
| BHC100@TD320 | 430 | 215 | 100 | 18H7 | 5 | 8X18 | 400&250 |
| BHC100@FT135 | 288 | 95 | 100 | 14H7 | 5 | 8X14 | 250&200 |
| BHC100@FT160A | 288 | 95 | 100 | 18H7 | 5 | 8X18 | 250&200 |
| BHC100@FT160 | 288 | 124 | 100 | 18H7 | 5 | 8X18 | 250&200 |
| BHC100@FT210 | 400 | 153 | 100 | 18H7 | 5 | 8X18 | 250&200 |
| 型式/规格 | O | P | Q | R | S | T | U | 搭配 |
| 机型 | ||||||||
| BHC100@TD170 | 108 | 68 | 40 | 30 | 100 | 65 | 40 | TD-170 |
| BHC100@TD200 | 108 | 68 | 40 | 30 | 100 | 65 | 40 | TD-200 |
| BHC100@TD255 | 156 | - | - | 30 | 128 | 34 | 40 | TD-255 |
| BHC100@TDE255 | 104 | 64 | 40 | 25 | 70 | 115 | 50 | TDE-255 |
| BHC100@TD320 | 176 | 120 | 48 | 30 | 200 | 115 | 40 | TD-320 |
| BHC100@FT135 | 55 | 30 | 33 | 30 | 160 | 64 | 40 | FT-135 |
| BHC100@FT160A | 55 | 30 | 33 | 30 | 160 | 64 | 40 | FT-160A |
| BHC100@FT160 | 84 | 40 | 42 | 30 | 160 | 64 | 40 | FT-160 |
| BHC100@FT210 | 113 | 60 | 47 | 30 | 140 | 80 | 40 | FT-210 |
单位mm
