LB / LD 圆型L块
商品介紹

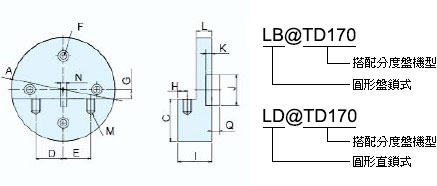

| 圆形盘锁式 | |||||||||
| 型式/规格 | A | B | C | D | E | F | G | H | I |
| LB@TD170 | Ø170 | - | 70 | 45 | 45 | M10 | 15 | 15 | 55 |
| 型式/规格 | J | K | L | M | N | O | P | Q | 搭配机型 |
| LB@TD170 | Ø50 | 10 | 25 | 2 XM10 | Ø10 | - | - | 15 | TD-170/TE-170/TD-200/DDR-260iB |
| 圆形直锁式 | |||||||||
| 型式/规格 | A | B | C | D | E | F | G | H | I |
| LD@TD170 | Ø170 | - | 70 | 45 | 45 | M10 | 15 | 15 | 55 |
| LD@DDR260iB | Ø170 | - | 70 | 45 | 45 | M10 | 15 | 15 | 55 |
| 型式/规格 | J | K | L | M | N | O | P | Q | 搭配机型 |
| LD@TD170 | Ø100 | 6 | 26 | 2 XM10 | Ø10 | - | - | - | TD-170 |
| TE-170 | |||||||||
| TD-200 | |||||||||
| LD@DDR260iB | Ø90 | 4 | 25 | 2 XM10 | Ø10 | - | - | - | DDR-260iB |
